UNV 4-Channel NVR (NVR301-04LS3-P4)

Streamline your security system with a compact 4-channel 4K NVR featuring 4 built-in Plug-and-Play PoE ports, Ultra 265 compression, and high-capacity single-drive storage.

Product Images & Video

Post

UNV 4-Channel NVR (NVR301-04LS3-P4)

Key Features

4K Ultra HD Output

Supports HDMI output up to 4K (3840x2160) resolution alongside simultaneous VGA output for clear local display monitoring.

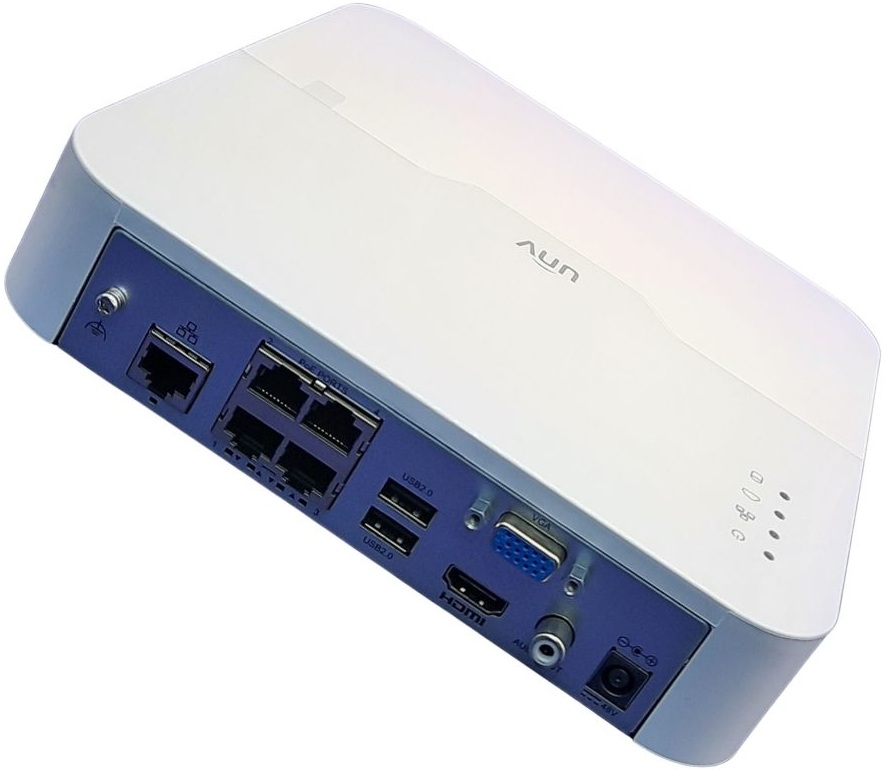

Built-In 4-Port PoE Switch

4 independent 10/100 Mbps PoE ports supply both power and data directly to connected IP cameras using standard network cables.

Ultra 265 Video Compression

Reduces storage requirements and bandwidth usage by up to 75% compared to standard H.264 without compromising image quality.

High Camera Compatibility

Full ONVIF conformance (Profile S, Profile G, Profile T) allows seamless integration with UNV and third-party IP cameras.

Smart Event Analytics

Supports IPC-driven smart features including motion detection, face detection, human body detection, and Smart Intrusion Prevention (SIP).

Expandable Local Storage

Features 1 SATA interface supporting 3.5" hard drives up to 10 TB for long-term video retention.

Technical Specifications

Manufacturer Specifications

Feature	Specification
Model	NVR301-04LS3-P4
IP Video Inputs	4 Channels
PoE Interfaces	4 Independent Ports (Plug & Play)
Video Decoding	Ultra 265, H.265, H.264
Audio Decoding	G.711A, G.711U
Bandwidth	Incoming: 64 Mbps \| Outgoing: 48 Mbps
HDMI Output	4K (3840×2160)/30Hz, 1080p/60Hz, 1080p/50Hz, 1600×1200, 1280×1024, 1280×720, 1024×768
VGA Output	1920×1080/60Hz, 1920×1080/50Hz, 1600×1200, 1280×1024, 1280×720, 1024×768
Decoding Performance	1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25
Browser Compatibility	Chrome 45+, Edge 79+, Firefox 52+, IE10/11

Applications

Small Retail & Office Surveillance – Directly powers and records up to 4 IP security cameras over standard Ethernet cables using its built-in Plug-and-Play PoE ports, eliminating the need for separate power injectors or switches.
Hallway & Narrow Corridor Monitoring – Native support for Corridor Mode screen layouts (3/4 vertical splits) makes it ideal for monitoring hotel hallways, office corridors, narrow aisles, and apartment walkways without wasting screen space.
High-Efficiency Storage Environments – Leverages Ultra 265 compression to save up to 75% in storage space and network bandwidth, allowing long-term video retention on a single 3.5" SATA HDD.
Residential & Remote Property Management – Supports P2P cloud connectivity and Web/Mobile App access for seamless live viewing and notifications across modern web browsers (Chrome, Edge, Firefox) without requiring special browser plugins.

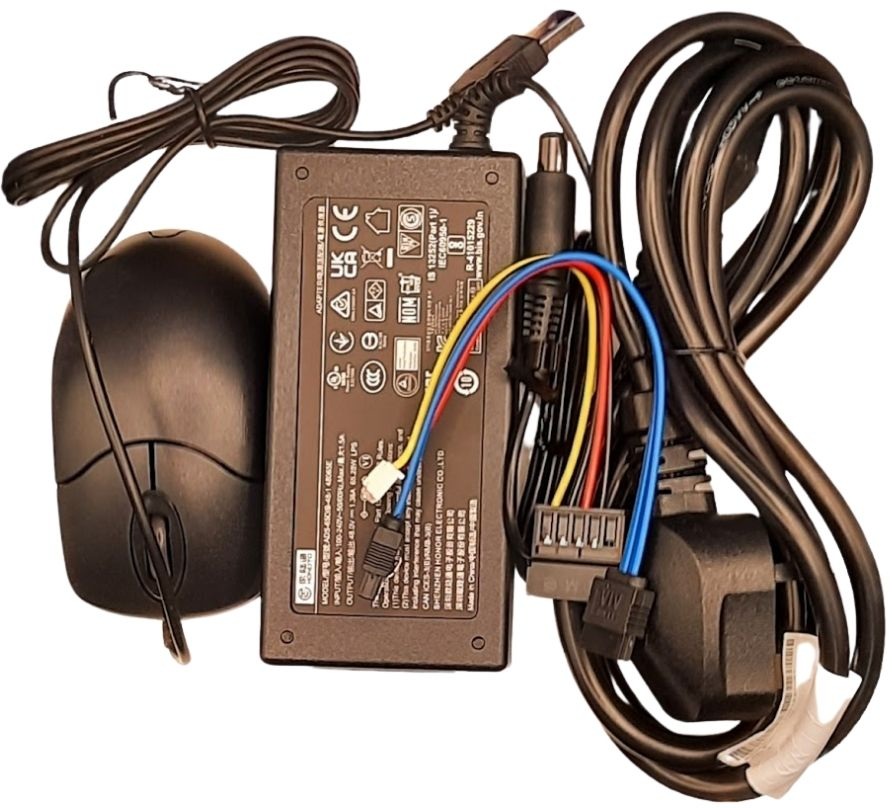

Package Contents

1x UNV NVR301-04LS3-P4
1x Power adapter
1x Power cable
1x mouse
User Manual

Safety & Compliance

Important Safety Instructions:

Electrical Safety Warning: Always disconnect the power supply before opening the top cover to install or replace an internal SATA hard drive. Servicing internal components while connected to power risks electrical shock and device damage.
Verify Power Adapter & Connections (Power & Voltage): Operate the NVR strictly using the original external 48V DC power adapter. Ensure the local AC outlet matches the adapter's input rating, and route power cables away from foot traffic or sharp edges to prevent electrical hazards.
Ensure Free Air Circulation (Thermal Management): Position the unit on a stable, level surface with at least 5 cm of clearance around the side and rear ventilation grilles. Do not cover the vents or stack heat-generating equipment directly on or under the recorder.
Mount Hard Drives Safely (Storage Handling): Power off the NVR completely before connecting or removing a 3.5" SATA hard drive. Avoid sudden movements or physical vibration while the system is writing data to prevent disk failure and loss of footage.
Protect Outdoor PoE Lines & Ports (Network & Environmental Care): When connecting outdoor IP cameras to the built-in PoE ports, install appropriate surge protection to guard against lightning and voltage spikes. Operate the device indoors within a clean, dry, and moisture-free environment.

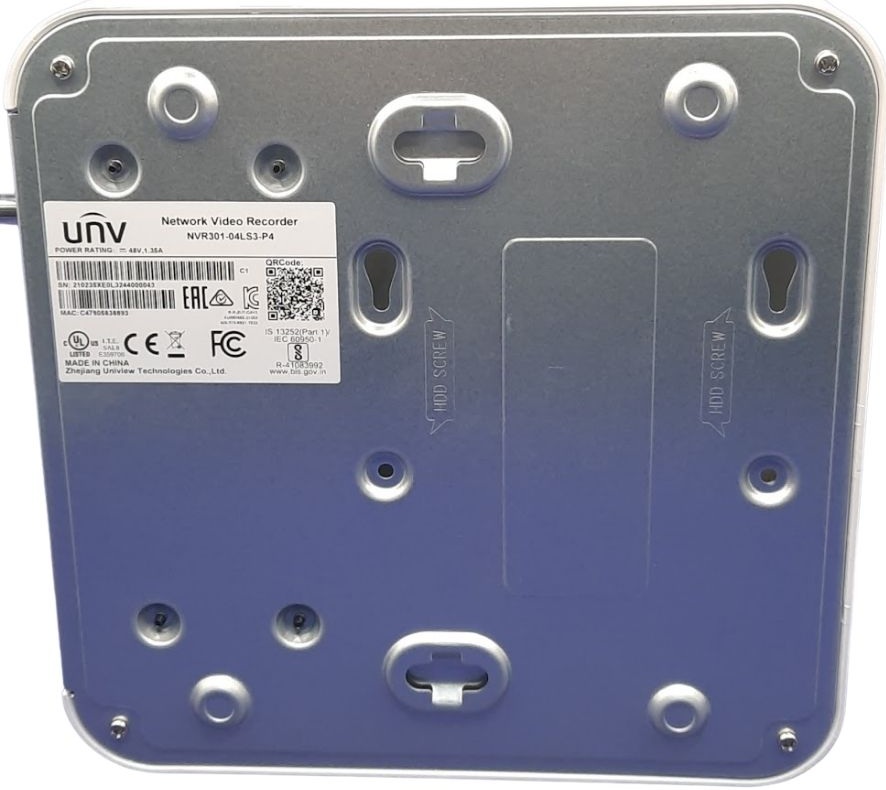

Certifications:

NDAA Compliant: Fully compliant with the John S. McCain National Defense Authorization Act (NDAA), making it suitable for US federal projects, government facilities, and enterprise security deployments.
CE Certified: Meets European Union health, safety, and environmental protection standards (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035).
FCC Certified: Complies with Federal Communications Commission EMC standards (Part 15 Subpart B, ANSI C63.4) for electromagnetic compatibility.
UL Listed: Evaluated and certified for electrical safety and reliability under recognized safety standards.
RoHS & WEEE Compliant: Built using hazardous-substance-free materials and engineered for environmentally responsible electronic waste disposal.
ONVIF Conformant: Officially certified for ONVIF Profile S, Profile G, and Profile T, ensuring cross-brand interoperability with third-party IP cameras.
