IP Camera

UNV 2MP Dome Network Camera (IPC322LB-SF28-A)

Vandal-proof surveillance for public spaces like bus stops or train stations.

Product Images & Video

UNV 2MP Dome Network Camera (IPC322LB-SF28-A)

Post

UNV 2MP Dome Network Camera (IPC322LB-SF28-A)

Key Features

Clear 1080p Full HD Video

Delivers crisp, high-quality images with a 2MP 1/2.8" progressive scan CMOS sensor running at up to 30 fps (1920 × 1080).

Wide 2.8mm Fixed Lens

Features a wide horizontal field of view (~106.7°), making it ideal for covering broad areas such as entrances, hallways, retail spaces, and offices.

Ultra 265 Video Compression

Utilizes UNV’s proprietary Ultra 265 encoding along with standard H.265/H.264 formats to reduce bandwidth and storage requirements by up to 75% without sacrificing image quality.

30m Smart IR Night Vision

Automatically adjusts infrared intensity to prevent overexposure when targets move close to the camera, ensuring clear night monitoring up to 30 meters (98 ft).

Vandal-Proof & Weather-Resistant Build

Encased in an IK10 vandal-resistant and IP67 weatherproof dome housing, built to withstand physical impacts and harsh outdoor conditions.

Flexible Power Options (PoE / 12V DC)

Supports Power over Ethernet (IEEE 802.3af) for simple single-cable network installation, as well as standard 12V DC power input.

Advanced Image Enhancement

Features 2D/3D Digital Noise Reduction (DNR), Digital WDR (DWDR), Backlight Compensation (BLC), and High Light Compensation (HLC) for clear images under uneven lighting.

ONVIF Compliant

Fully compatible with Profile S and Profile T standards for seamless integration with third-party Network Video Recorders (NVRs) and VMS platforms.

Technical Specifications

Parameter	Specification
Image Sensor	1/2.8", 2.0 Megapixel, Progressive Scan CMOS
Resolution	1080P (1920 × 1080) @ 30fps
Lens Focal Length	2.8mm @ F2.0
Field of View	Horizontal: 106.7° \| Vertical: 57.1°
IR Distance	Up to 30 m (98.4 ft) with Smart IR
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR
Video Compression	Ultra 265, H.265, H.264
Protection Rating	IP67 (Weatherproof) & IK10 (Vandal-Proof)
Power Supply	DC 12V ± 25% / PoE (IEEE 802.3af)
Power Consumption	Max 5.0W
Operating Temp.	-30°C to +60°C (-22°F to 140°F)
Dimensions / Weight	Φ109 mm × 81 mm / 0.35 kg

Applications

Retail Stores & Boutiques – Ideal for mounting near checkout counters, main entry/exit points, and wide shopping aisles to monitor foot traffic, prevent shoplifting, and maintain staff safety.
Commercial Offices & Business Premises – Perfect for reception areas, common hallways, breakrooms, and elevators where wide-angle coverage reduces the total number of cameras needed.
Warehouses & Storage Facilities – Offers reliable monitoring over loading docks, inventory racks, and dispatch gates, utilizing Smart IR night vision for round-the-clock security in poorly lit spaces.
Residential Properties & Apartment Complexes – Provides discreet protection for building entrances, lobbies, parking structures, and perimeter walkways.
Schools & Educational Campuses – Suitable for high-traffic public areas like hallways, cafeterias, and outdoor courtyards where vandal resistance (IK10) is critical to prevent accidental or deliberate damage.
Public & Outdoor Areas – Designed with an IP67 weatherproof housing to withstand harsh elements such as rain, dust, and extreme temperature fluctuations (-30°C to +60°C) along exterior walls, gate entries, and open parking lots.

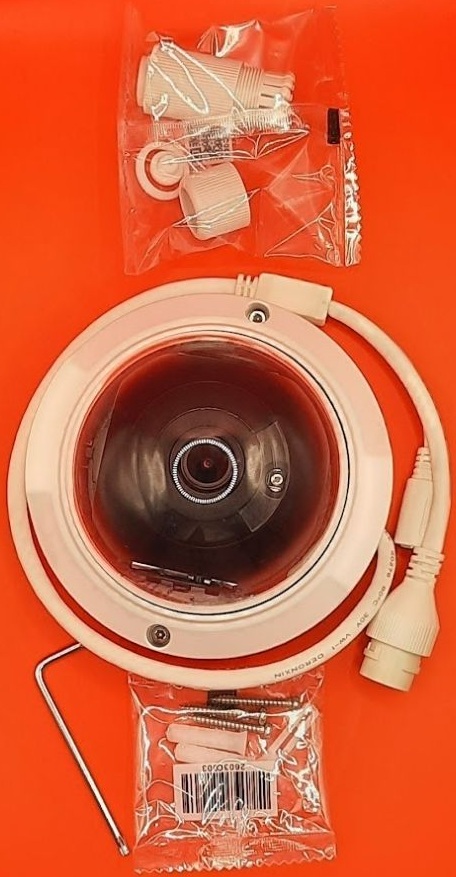

Package Contents

1x UNV IPC2125LB-SF28-A Camera
Mounting accessories
User Manual

Safety & Compliance

Important Safety Instructions:

Power Supply Compliance: Operating Voltage Range: Supply the unit strictly with $12\text{V DC} \pm 25\%$ or via Standard Power over Ethernet (PoE IEEE 802.3af). Using non-compliant or unstable power adapters may cause permanent circuit board damage or operational instability.
Grounding & Electrical Surge Protection: Ensure the camera system, network cable shielding, and connected NVR or PoE switch are properly grounded. Installing an inline surge protector is recommended when mounting the unit outdoors or in high lightning-risk environments.
Proper Installation & Mounting Surface: Install the base firmly on a structural wall, ceiling, or junction box capable of supporting at least 3 times the total weight of the camera and mounting accessories to prevent accidental detachment.
Optical & Lens Care: Do not touch the optical dome bubble directly with bare hands. Fingerprints or oil deposits reduce infrared clarity and cause light scattering at night. Clean the dome cover using an anti-static lint-free cloth and isopropyl alcohol if necessary.
Moisture & Weatherproof Sealing: When deploying the camera in outdoor environments, ensure the waterproof cable gland (included) is properly assembled over the RJ45 ethernet connector to preserve the IP67 weather-resistance rating and prevent water ingress.
Thermal Operating Range: Ensure the ambient operating temperature remains within $-30^\circ\text{C}$ to $+60^\circ\text{C}$ ($-22^\circ\text{F}$ to $140^\circ\text{F}$). Do not install the camera in enclosed spaces directly adjacent to high-heat sources or direct heating vents.

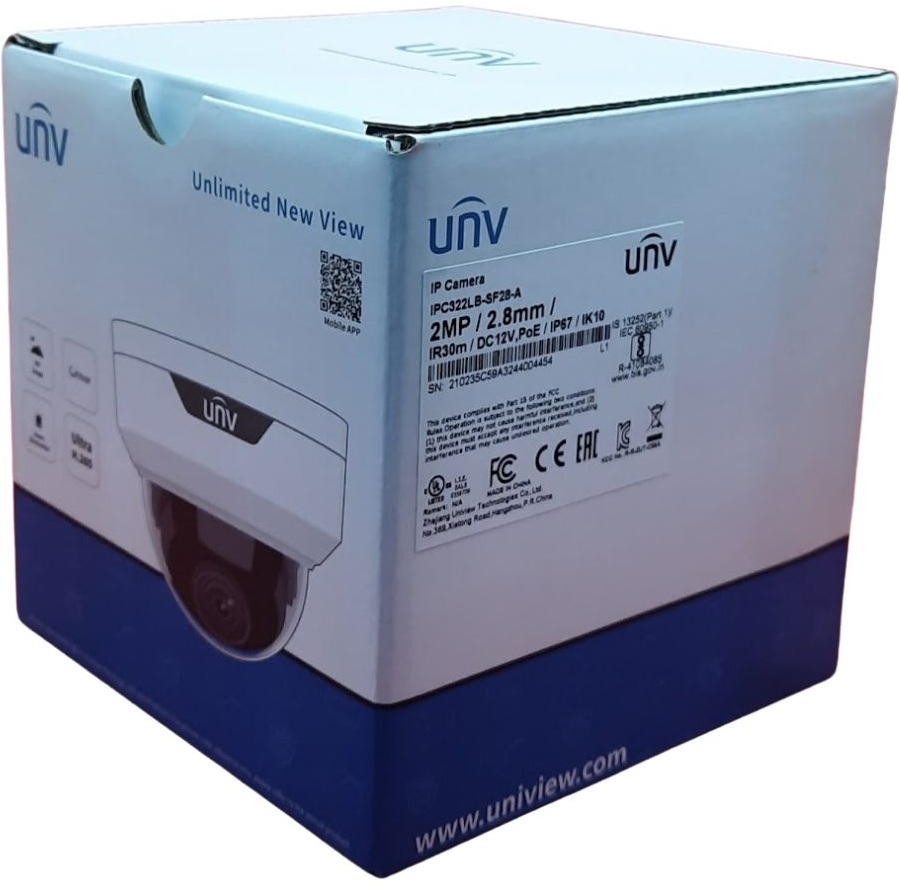

Certifications:

CE Certified (European Conformity): Complies with essential health, safety, and environmental protection standards under European directives (EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3) for electromagnetic compatibility and low-voltage electrical safety.
FCC Compliant (Part 15, Subpart B): Meets Federal Communications Commission requirements for Class A digital devices, ensuring low radio frequency interference (RFI) in commercial and residential deployments.
UL / cUL Listed: Verified under UL 62368-1 safety standards for audio/video, information, and communication technology equipment.
IP67 Ingress Protection (IEC 60529): Fully dust-tight and tested against water immersion (up to 1 meter depth for 30 minutes), ensuring long-term outdoor durability in heavy rain or sandstorms.
IK10 Impact Protection (IEC 62262): Rated for high vandal resistance against mechanical impacts of up to 20 Joules (equivalent to the impact of a 5 kg mass dropped from 400 mm).
RoHS Compliant (Directive 2011/65/EU): Environmentally compliant design, manufactured without hazardous substances like lead, mercury, and cadmium.
ONVIF Compliant (Profile S & Profile T): Standardized interface compliance ensuring seamless interoperability with third-party Network Video Recorders (NVRs) and Video Management Systems (VMS).

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.

Interested in this product?

Request Quote
