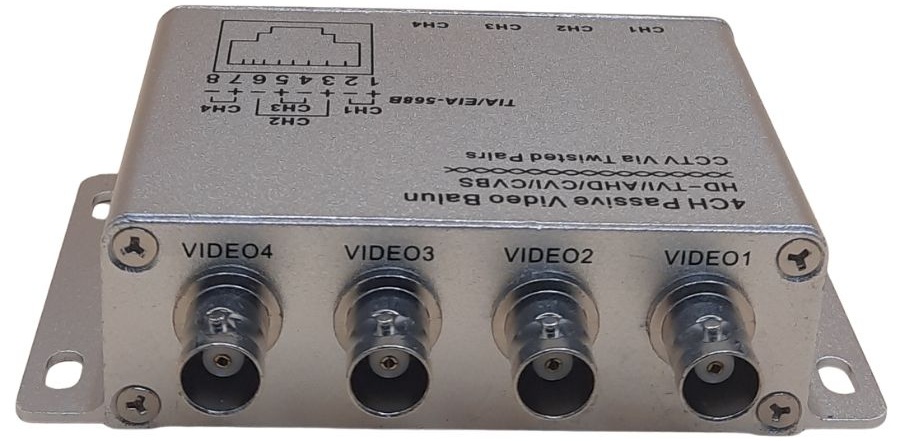

HD Video Balun (4-Channel, Passive)

Supports HD-TVI, AHD, CVI, CVBS | Transmits Over Twisted Pairs | Reliable CCTV Signal Transmission

Post

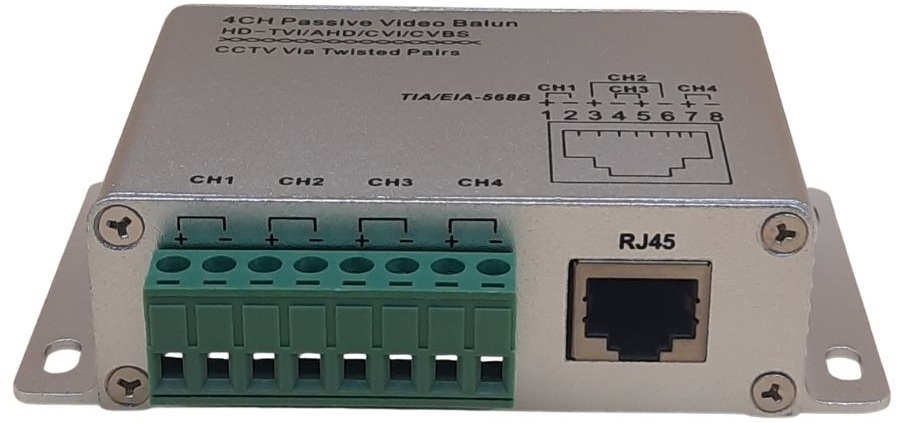

Ports View

Compatible with HD-TVI, AHD, CVI, and CVBS video formats.

Transmits video signals up to 330 meters (1082 feet) over twisted-pair cables.

No external power supply required, making installation simple and cost-effective.

Supports up to 4 video channels simultaneously for multi-camera setups.

Ensures stable and interference-free signal transmission for high-quality video output.

Specification	Details
Dimensions HxWxD (Packaged)	3.6 x 11.6 x 8.7 cm
Weight (Packaged)	170g
Compatibility	Compatible with HD-TVI, AHD, CVI, and CVBS video formats.
Power Supply	No external power supply required, making installation simple and cost-effective.
Interface/Ports	RJ45 and BNC connectors
Cables	Not included. Requires Cat5e/Cat6 network cable and standard BNC video cables.
Additional Specifications	Supports up to 330 meters (1082 feet) over Cat5e/6 twisted-pair cables.

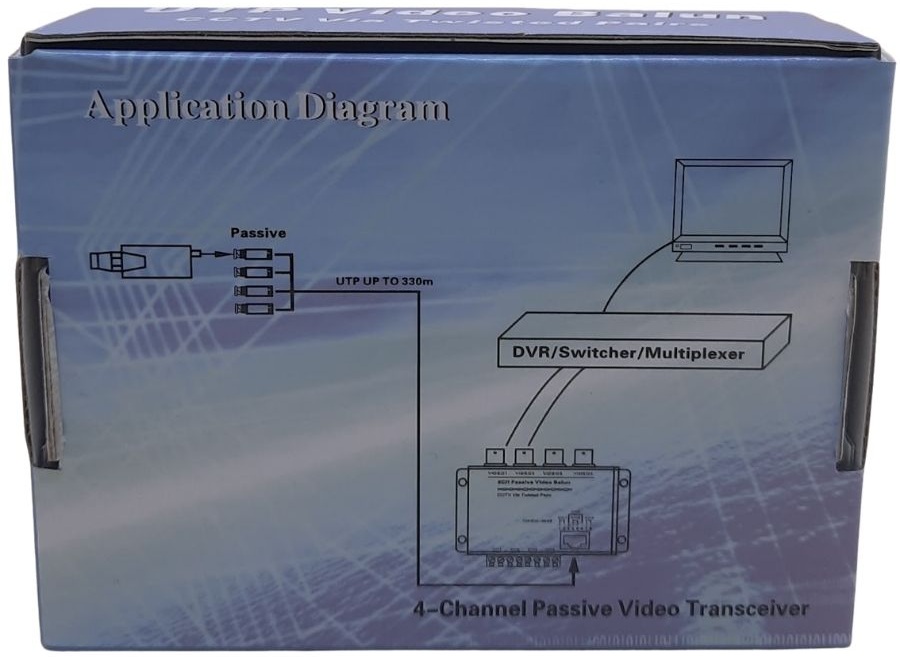

Home Security Systems – Extend video signals from security cameras to DVRs or monitors.
Commercial Surveillance – Ideal for businesses, warehouses, and retail spaces requiring long-distance video transmission.
Large-Scale Installations – Perfect for multi-camera setups in schools, hospitals, and industrial facilities.
CCTV Networks – Enhance the performance of existing CCTV systems by using twisted-pair cables for video transmission.

Use only low‑voltage CCTV equipment with this device to avoid damage or signal issues.
Do not expose the balun to moisture, heat, or direct sunlight to prevent malfunction.
Ensure all wiring is secure and powered off during installation to avoid short circuits.

Please contact us for warranty information specific to this product.
