USB Extender via Cat-5/5e/6 (100m)

Extend USB 2.0 devices up to 100 meters over standard Cat5/Cat5e/Cat6 ethernet cable with external 5V 2A power support.

Product Images & Video

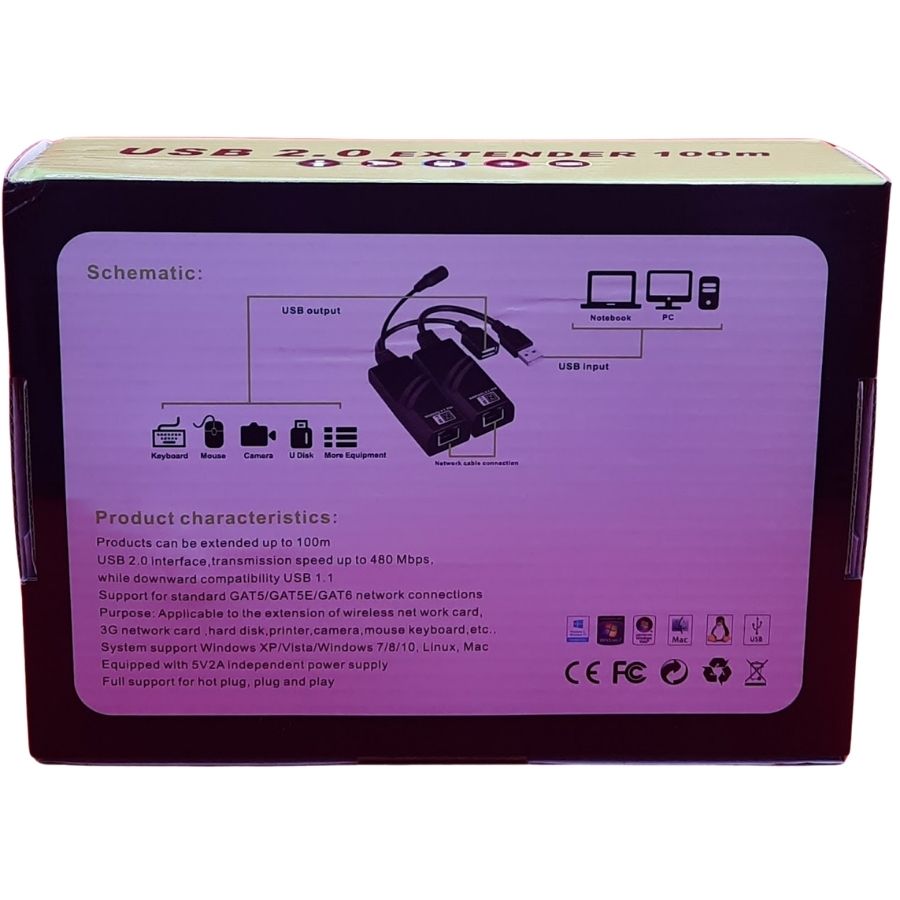

Package view of USB Extender via Cat-5/5e/6 (100m)

Post

Package view of USB Extender via Cat-5/5e/6 (100m)

Key Features

100-Meter Long-Range USB Extension

Extends USB 2.0 signals up to 100m (328ft) over cost-effective Cat5, Cat5e, or Cat6 Ethernet cabling, bypassing the standard 5m USB length restriction.

High-Speed 480 Mbps Data Rates

Supports full USB 2.0 transfer speeds up to 480 Mbps with backward compatibility for USB 1.1 legacy peripherals.

Dedicated 5V 2A External Power Supply

Equipped with an independent 5V 2A power adapter for the receiver unit, providing stable current to power-hungry devices like external hard drives, 3G/4G modems, and USB cameras.

Universal Hardware Compatibility

Works seamlessly with a wide range of USB peripherals, including webcams, security cameras, printers, barcode scanners, wireless network adapters, keyboards, and mice.

Broad OS Support & Plug-and-Play Setup

Fully driver-free, hot-pluggable operation compatible with Windows XP/Vista/7/8/10, macOS, and Linux operating systems.

Durable Compact Dongle Design

Flexible cable tails reduce strain on host USB ports and simplify installation behind wall-mounted TVs, digital signage displays, or tight server racks.

Technical Specifications

Specification	Details
Product Type	USB 2.0 Extender over Cat5/Cat5e/Cat6
Maximum Transmission Distance	Up to 100m (328ft)
USB Protocol	USB 2.0 (High-Speed up to 480 Mbps), backward compatible with USB 1.1

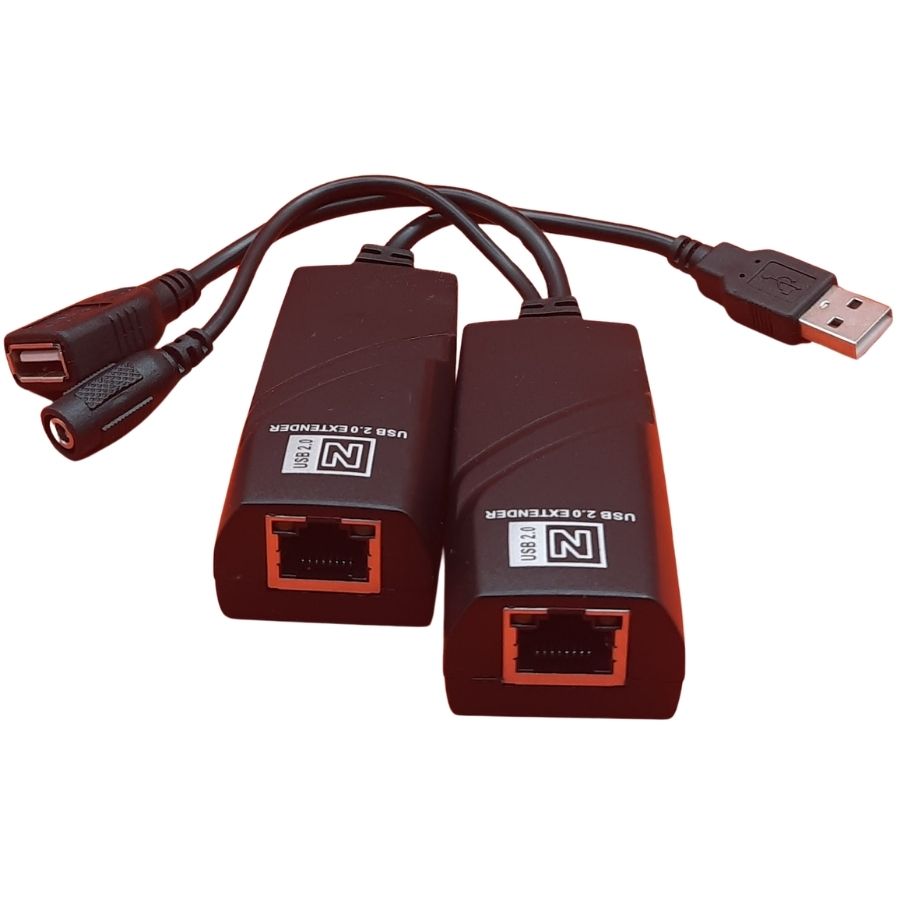

Transmitter (Tx) Interfaces	1x USB Type-A Male (Host input pigtail), 1x RJ45 Female Port
Receiver (Rx) Interfaces	1x USB Type-A Female (Device output pigtail), 1x RJ45 Female Port, 1x 5V DC Power Jack
Compatible Cable Types	Standard UTP/STP Cat5, Cat5e, Cat6, Cat7, Cat8 Ethernet Cabling
Power Supply	External 5V DC, 2A Power Adapter (included)
Operating System Compatibility	Windows XP / Vista / 7 / 8 / 10 / 11, macOS, Linux
Installation Plug-and-Play	Hot-swappable, driverless installation

Applications

DVR / NVR Security Systems & Remote Monitoring: Connects USB mice, keyboards, or flash drives to security recorders positioned far from control desks or inside secure server enclosures.
Interactive Whiteboards & Digital Signage: Bridges connections between ceiling-mounted projectors, touch-enabled interactive displays, and a centralized host PC in classrooms, lecture halls, or corporate boardrooms.
Industrial Automation & Machine Control: Enables remote management of CNC machinery, 3D printers, barcode scanners, and PLC programming interfaces from clean, isolated control rooms up to 100m away.
Workstation / Server Isolation: Tucks high-performance PCs and servers into cooled, noise-insulated equipment rooms while routing USB peripherals (keyboard, mouse, audio interfaces) directly to user desks.
Remote USB Storage & Media Transfer: Connects external hard drives, card readers, or USB Wi-Fi/cellular adapters to network equipment or remote workstations over structured premises cabling.

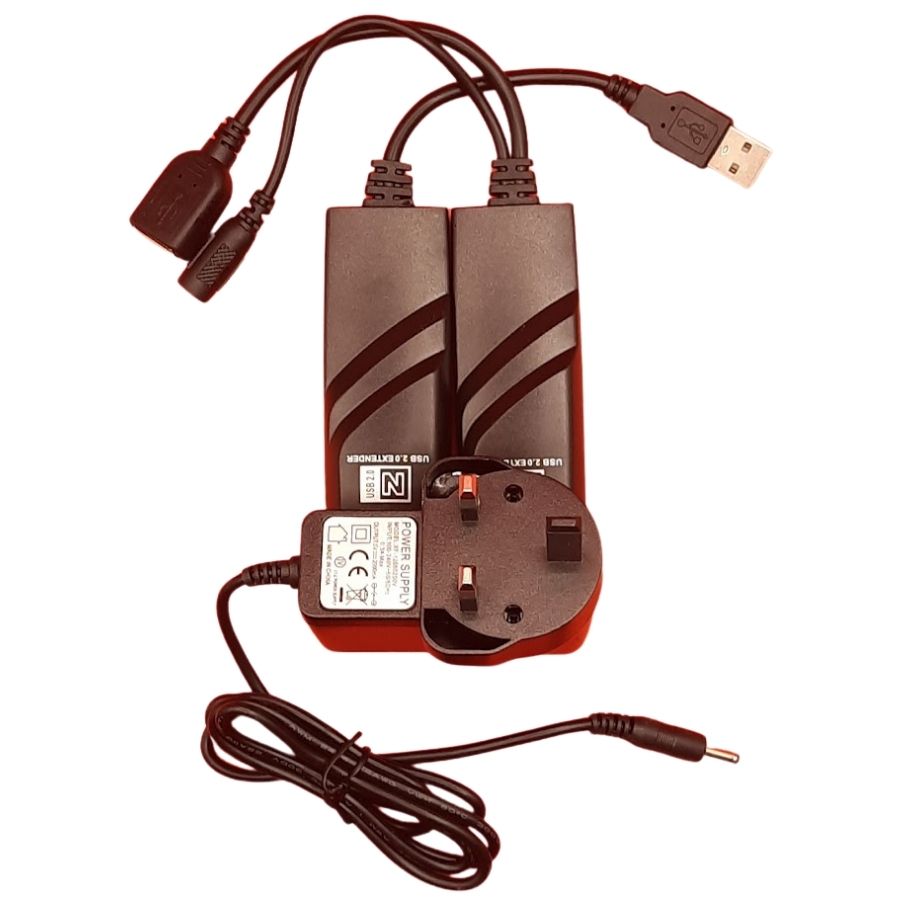

Package Contents

1x 100M USB Extender Transmitter Unit
1x 100M USB Extender Receiver Unit
1x Power Adapter (DC 5V/2A)
User Manual

Safety & Compliance

Important Safety Instructions:

Use Only the Specified Power Adapter: Operate the extender kit exclusively with the included 5V DC, 2A power adapter to prevent internal circuit damage or electrical hazards.
Ensure Indoor Dry Installation: Deploy both the transmitter and receiver units in dry, indoor environments only. Keep the equipment away from moisture, high humidity, and liquid exposure.
Route Network Cables Away from Power Lines: Keep the interconnecting Cat5/Cat5e/Cat6 Ethernet cables separated from high-voltage AC power lines to avoid electromagnetic interference and physical safety risks.
Prevent Excessive Port Strain: Avoid letting the weight of the extender dongles pull directly on host computer USB ports or attached peripheral devices; use proper cable management to support slack.
Disconnect During Electrical Storms: Unplug the power supply unit during severe thunderstorms or extended periods of non-use to protect the circuitry from power surges.

Certifications:

CE
FCC
RoHS

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.

Customer Support

For support, please visit our Contact Us page.
