RG6 Cable CCS 95% Shielded (305m)

Professional-grade 305m wooden drum RG6 coaxial cable engineered with dual-layer aluminium shielding for high-frequency HD television and security camera installations.

Product Images & Video

Cable view

Key Features

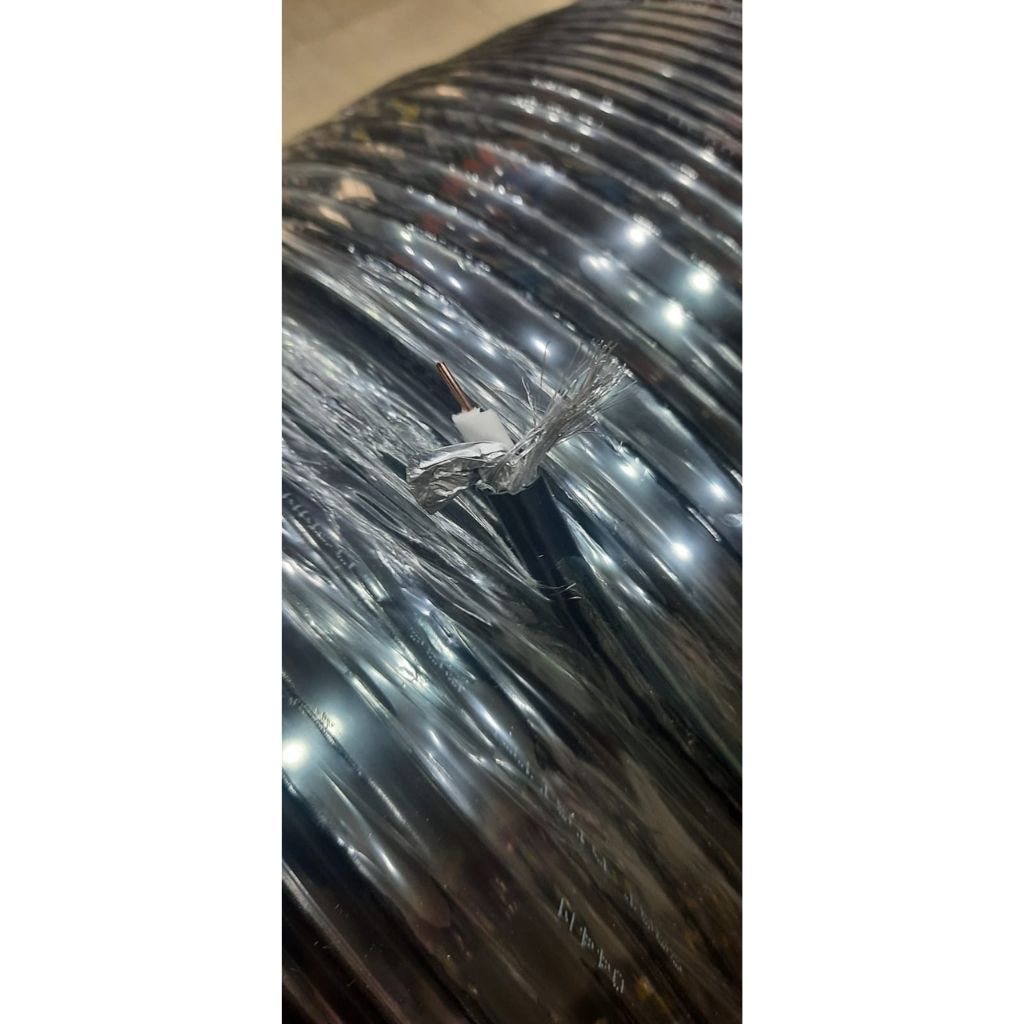

High-Density 95% Aluminium Braid Shielding

Combines a 100% coverage aluminium foil shield with a heavy-duty 64 x 0.12mm aluminium wire braid to block electromagnetic interference (EMI) and radio frequency interference (RFI).

1.02mm Copper-Clad Steel (CCS) Conductor

Solid 1.02mm CCS core delivers strong mechanical tensile strength for long cable pulls while maintaining reliable 75Ω impedance for high-frequency signal transmission.

4.7mm Foamed Polyethylene (FPE) Dielectric

Precision gas-injected FPE insulation ensures stable velocity of propagation, minimal signal attenuation, and uniform conductor spacing over long distances.

Tough 6.6mm Black PVC Outer Jacket

Smooth, wear-resistant outer sheath offers protection against mechanical abrasion, pulling friction, and physical wear during installation inside raceways and conduits.

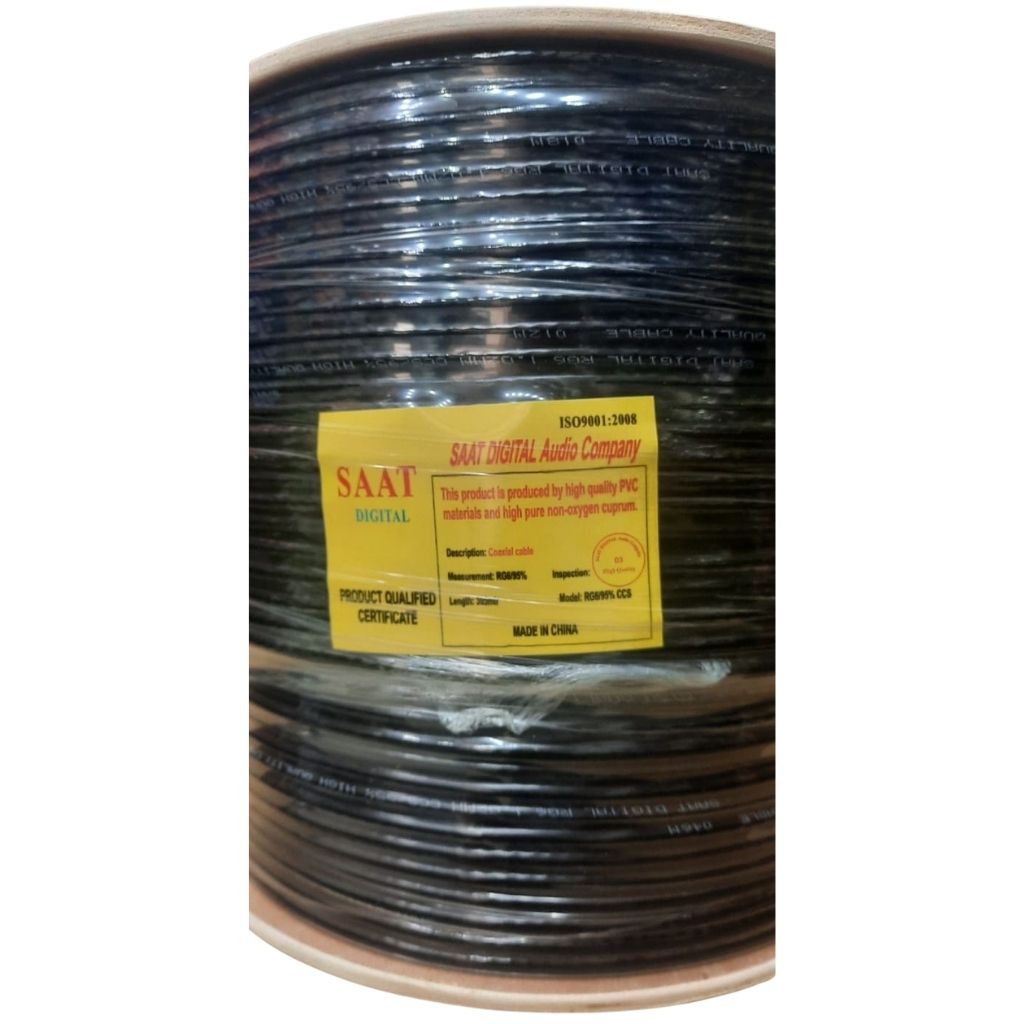

Contractor-Grade 305m Wooden Drum

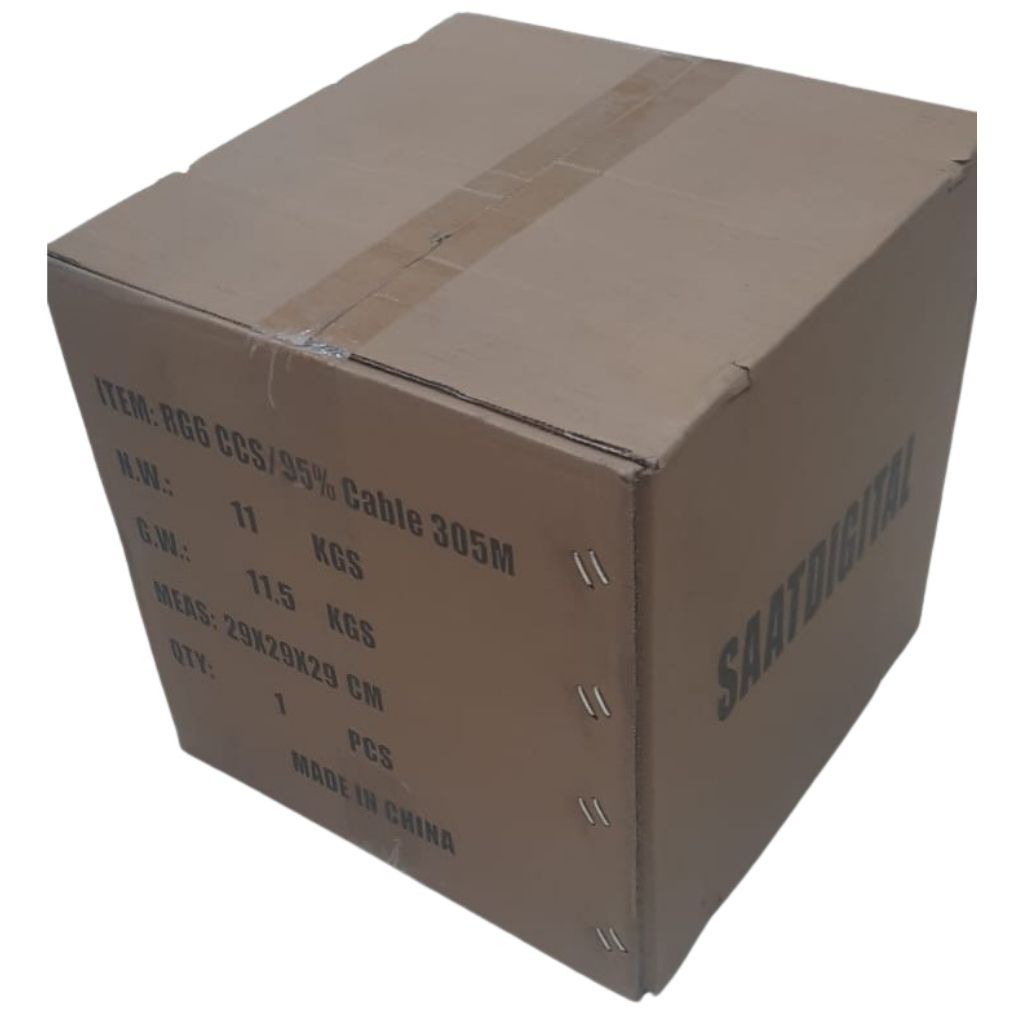

Packaged on a sturdy 305m (1000ft) wooden reel inside a protective brown shipping carton, allowing smooth, snag-free pay-off for bulk cable runs.

Versatile Broadband Compatibility

Engineered for low-loss transmission of satellite TV (SMATV), cable television (CATV), over-the-air HD antenna signals, and CCTV analog security systems.

Technical Specifications

Specification PDF

Parameter	Specification Details
Product Series	RG6 Coaxial Cable
Center Conductor	1.02mm Solid Copper-Clad Steel (CCS)
Dielectric Material	4.70mm Foamed Polyethylene (FPE)
Shielding 1 (Inner)	Aluminium Foil (100% Coverage)
Shielding 2 (Outer)	64 x 0.12 mm Aluminium Braid (95% Coverage)
Outer Jacket	6.60mm PVC (Black)
Characteristic Impedance	75 ± 3Ω
Cable Length	305m (1000ft)
Packaging Type	Sturdy Wooden Drum in Brown Shipping Carton
Application Environment	Indoor / In-Conduit Installations

Applications

Satellite TV & SMATV Distribution – Primary coaxial cabling for dish-to-receiver runs, multi-switches, and Satellite Master Antenna Television (SMATV) distribution systems in residential and commercial buildings.
Cable TV (CATV) & Internet Infrastructure – High-bandwidth transmission lines for cable television networks and coaxial cable modems in home or office networks.
CCTV Video Transmission – Analog security camera video signal runs (HD-TVI, HD-CVI, AHD, or traditional composite) connecting cameras to Digital Video Recorders (DVRs).
Terrestrial HD Antenna Runs – Connecting over-the-air (OTA) digital TV antennas to indoor televisions, signal splitters, or distribution amplifiers.
In-Conduit & Raceway Cable Pulls – Ideal for pulling long cable runs through PVC or flexible conduits within walls, risers, drop ceilings, and cable raceways.

Package Contents

1x RG6 Cable CCS 95% Shielded (305m)

Safety & Compliance

Important Safety Instructions:

Voltage Limitations: This coaxial cable is strictly designed for low-voltage signal transmission (75Ω RF/video signals). Do not use it as an electrical power supply line or connect it directly to mains electrical wiring.
Observe Minimum Bend Radius: Avoid sharp bends, severe kinks, or crushing the cable during pulling. A minimum bend radius of at least 10 times the cable diameter (≈ 66mm) should be maintained to prevent dielectric deformation and impedance drops.
Proper Stripping & Connector Fitting: Use appropriate coaxial cable strippers to prepare ends. Ensure no loose strands of the 64 x 0.12mm aluminium braid short-circuit with the central 1.02mm CCS conductor when attaching F-type or BNC connectors.

Conduit Protection for Outdoor/Underground Runs: The 6.6mm PVC jacket is rated for indoor application. If running outdoors, underground, or through harsh damp areas, route the cable through sealed UV-resistant PVC or metallic conduits to prevent moisture damage and weather degradation.

Grounding Antenna Systems: When connecting to outdoor antennas or satellite dishes, properly ground the coaxial cable shield at the building entry point using a certified grounding block in compliance with local electrical safety codes.

Avoid Excessive Tension During Pulls: Do not exceed standard cable pulling tension limits. Excessive pulling force can stretch the CCS core or split the outer PVC jacket, compromising signal performance.
