Fast Media Converter (HTB-1100S-25KM, netLINK)
Seamless copper-to-fiber conversion that extends your 10/100Mbps Ethernet network up to 25km over single-mode fiber.
Product Images & Video
Key Features
Long-Distance Single-Mode Conversion
Converts 10/100Base-TX copper Ethernet signals to 100Base-FX single-mode fiber optic signals, extending transmission distances up to 25 km.

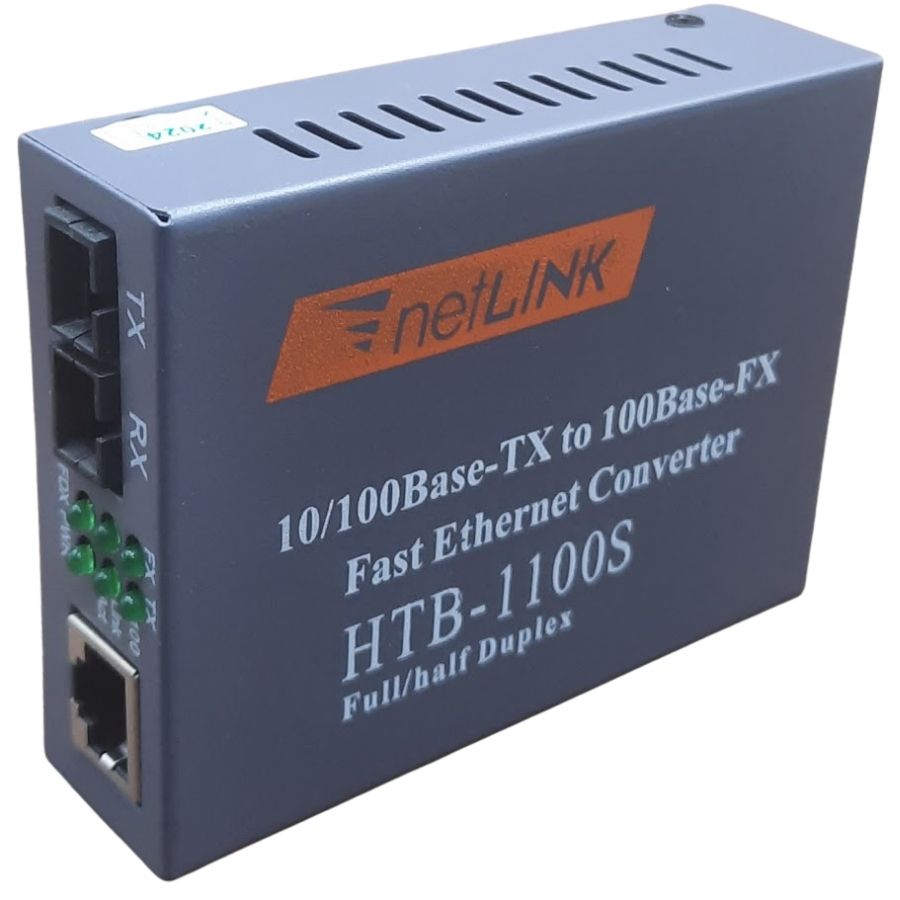

Dual SC Fiber Interface
Equipped with dedicated TX (transmit) and RX (receive) SC-type optical connectors for stable, full-duplex data transfer over standard single-mode fiber patch cables.
Auto-MDI/MDIX & Auto-Negotiation
The RJ45 Ethernet port automatically detects network speed (10 Mbps or 100 Mbps) and configures crossover or straight-through cable connections without requiring manual DIP switch adjustments.
Comprehensive Diagnostic LED Panel
Features front-facing LED indicators for Power (PWR), Link/Act, Full/Half Duplex (FDX), and Fiber Status (FX TX/RX), allowing quick, at-a-glance status monitoring and network troubleshooting.
Compact Heavy-Duty Metal Chassis
Enclosed in a rugged, heat-dissipating metal housing designed for standalone desktop use or installation into standard rackmount media converter chassis.
Plug-and-Play Simplicity
Requires no complex software configurations or driver installations—simply connect power, copper Ethernet, and single-mode fiber for immediate deployment.

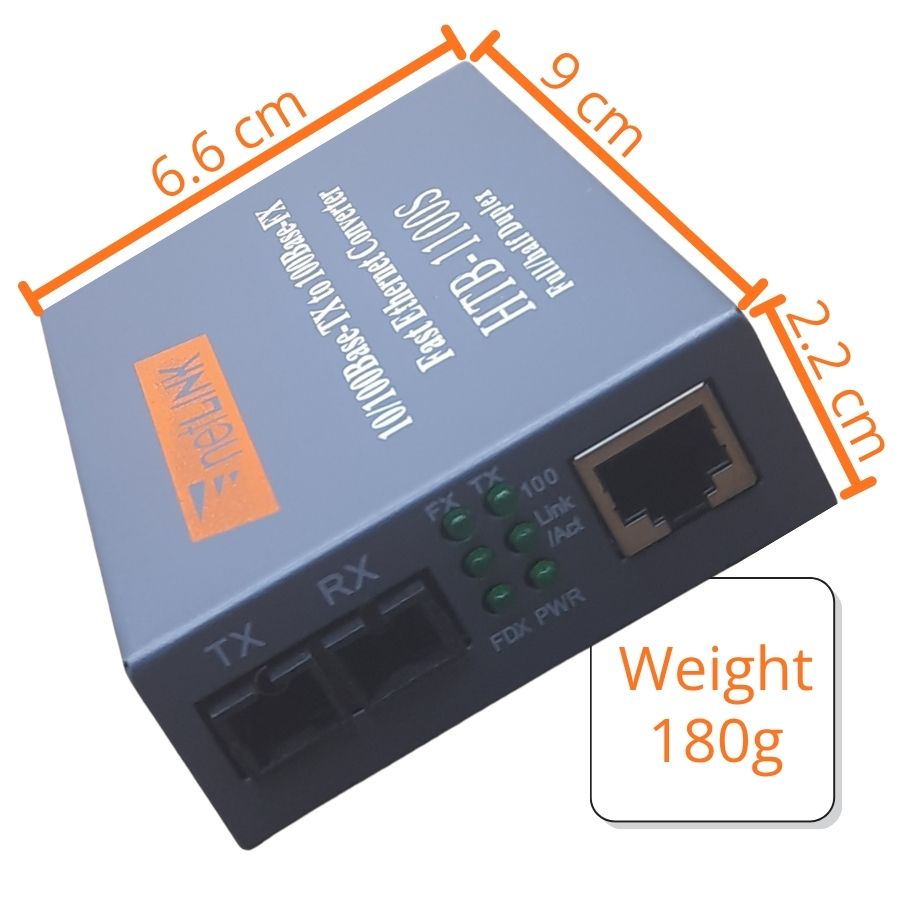

Technical Specifications
| Specification | Details |
|---|---|
| Brand | netLINK |
| Model | HTB-1100S-25KM |
| Product Type | Fast Ethernet Fiber Media Converter |
| Standards Compliance | IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX / 100Base-FX) |
| Copper Interface | 1xRJ45 Port (10/100 Mbps, Auto-Negotiation, Auto-MDI/MDIX) |
| Fiber Interface | Dual SC Connectors (TX & RX) |
| Fiber Cable Compatibility | Single-Mode Fiber (9/125 µm) |
| Maximum Fiber Distance | Up to 25 km |
| Duplex Modes | Full-Duplex / Half-Duplex Auto-Negotiation |
| Status LEDs | PWR, FDX/Col, FX Link/Act, TX Link/Act, FX 100, TX 100 |
| Chassis Construction | Durable Industrial Metal Housing |

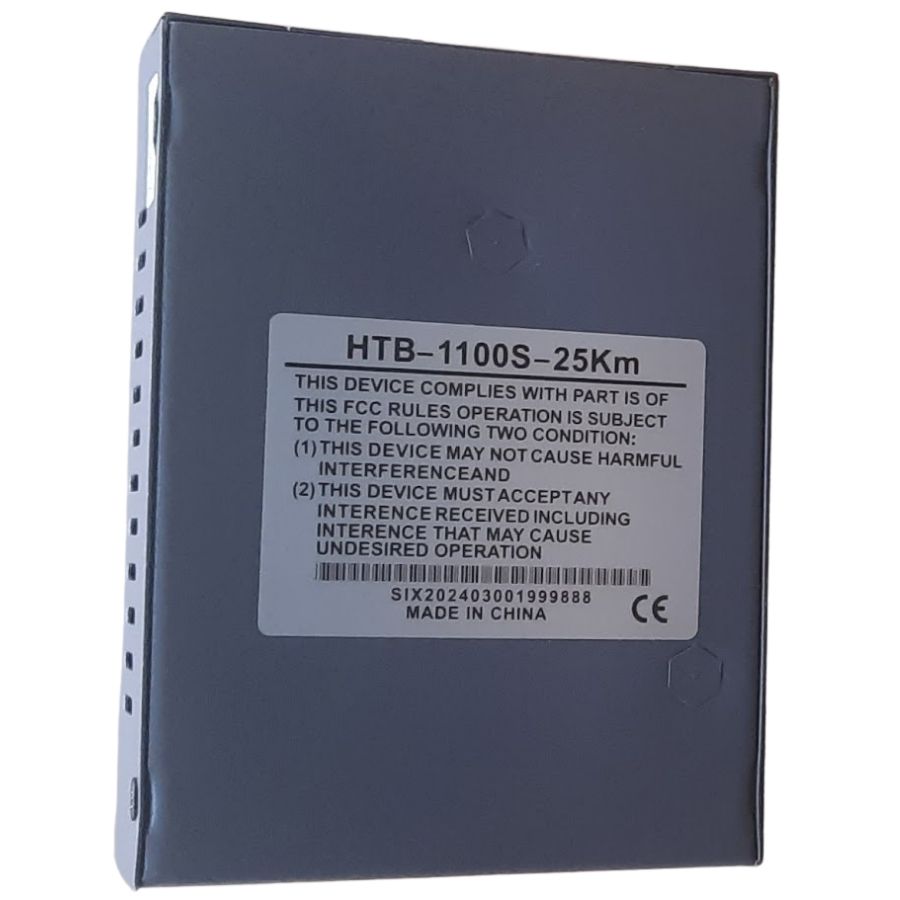

| Regulatory & Safety | FCC Part 15, CE Certified, RoHS |
Applications
- Long-Distance IP CCTV & Surveillance Extensions – Extends network connectivity for remote outdoor cameras, gate access control systems, and security booths situated beyond the 100 m copper Ethernet limitation (up to 25 km).
- Building-to-Building & Campus Networking – Connects separate office buildings, warehouses, or educational facilities over a dedicated single-mode fiber link without requiring expensive active network routing equipment.
- High-Noise Industrial Fiber Backbones – Replaces copper Ethernet links in electrically noisy industrial environments—such as near high-voltage lines, heavy generators, or manufacturing equipment—eliminating EMI/RFI signal corruption.
- Service Provider & ISP Last-Mile Delivery – Acts as an economical optical demarcation device for delivering 100 Mbps Fast Ethernet connections from ISP fiber lines into customer premises equipment (CPE).
- Enterprise Network Distance Expansion – Integrates distant workstation clusters, remote access points, or isolated network switches back to the primary core server rack.

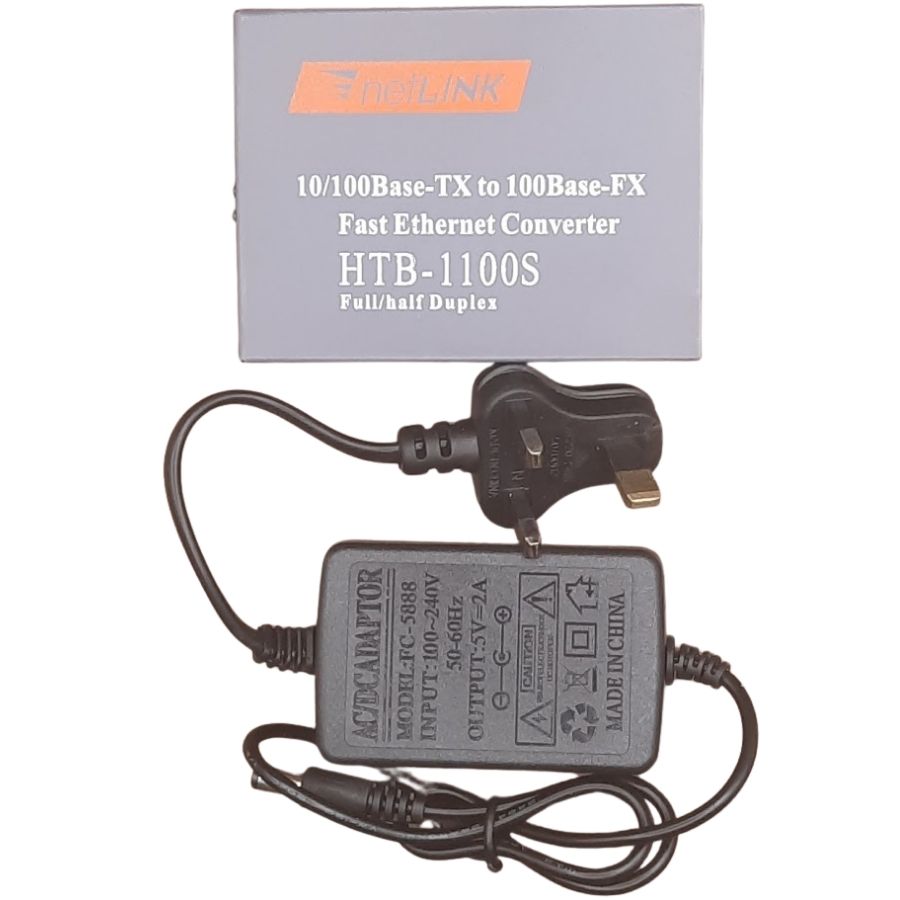

Package Contents
