Power Supply
CCTV PS - 12V 20A 18CH
Powering Every Camera. Protecting Every Corner.
The CCTV Power Supply - 12V 20A 18CH is a reliable and professional-grade solution designed to power up to 18 CCTV cameras in your security system. With a robust output of 12V DC and a total current capacity of 20A, this power supply ensures stable and consistent performance for all connected devices. Each of the 18 outputs is individually fused to protect your cameras from electrical surges, ensuring maximum safety and longevity.
Whether you’re managing a home security system, office surveillance, or large-scale industrial monitoring, the CCTV Power Supply - 12V 20A 18CH ensures reliable and efficient power distribution for your cameras.
Why Choose the CCTV Power Supply - 12V 20A 18CH?
- Reliable Performance: Ensures stable and consistent power delivery for up to 18 cameras.
- Enhanced Safety: Individually fused outputs prevent damage from electrical surges.
- Flexible Installation: Wall-mountable design saves space and ensures secure placement.
- Adaptable Input Voltage: Works with both 110V AC and 220V AC input voltages, making it suitable for global use.
- Professional-Quality Build: Designed specifically for CCTV systems with durable materials and safety features.
Product Images & Video
Key Features
High Capacity Output
Provides 12V DC with a total current of 20A, supporting up to 18 CCTV cameras.
Individually Fused Outputs
Protects each camera from electrical faults or surges.
Input Voltage Flexibility
Supports both 110V AC and 220V AC input voltages, making it adaptable to various regions.
Wall-Mountable Design
Compact and secure design for easy installation in any setup.
Safety Features

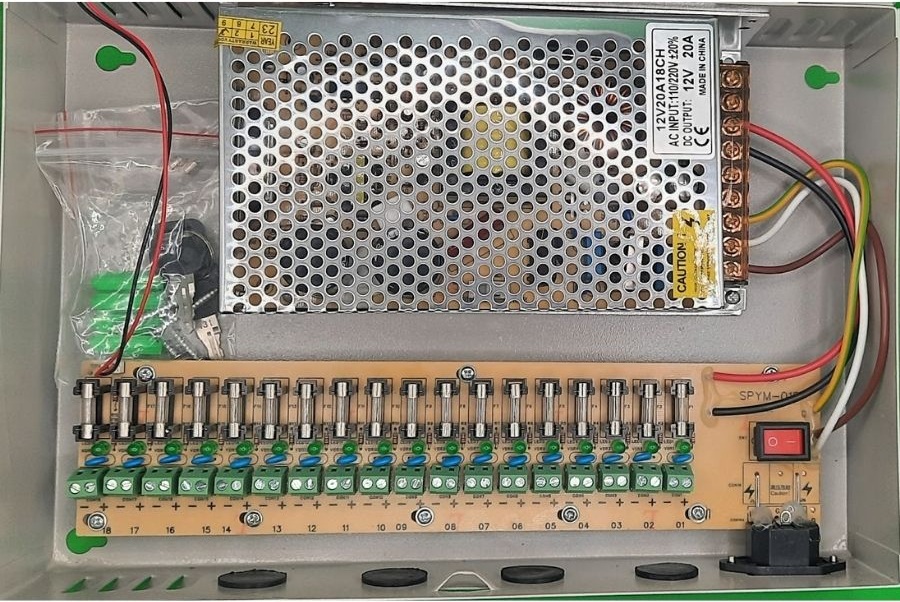

Includes a safety cage-protected transformer, front-mounted status LED, and lockable enclosure for enhanced security.

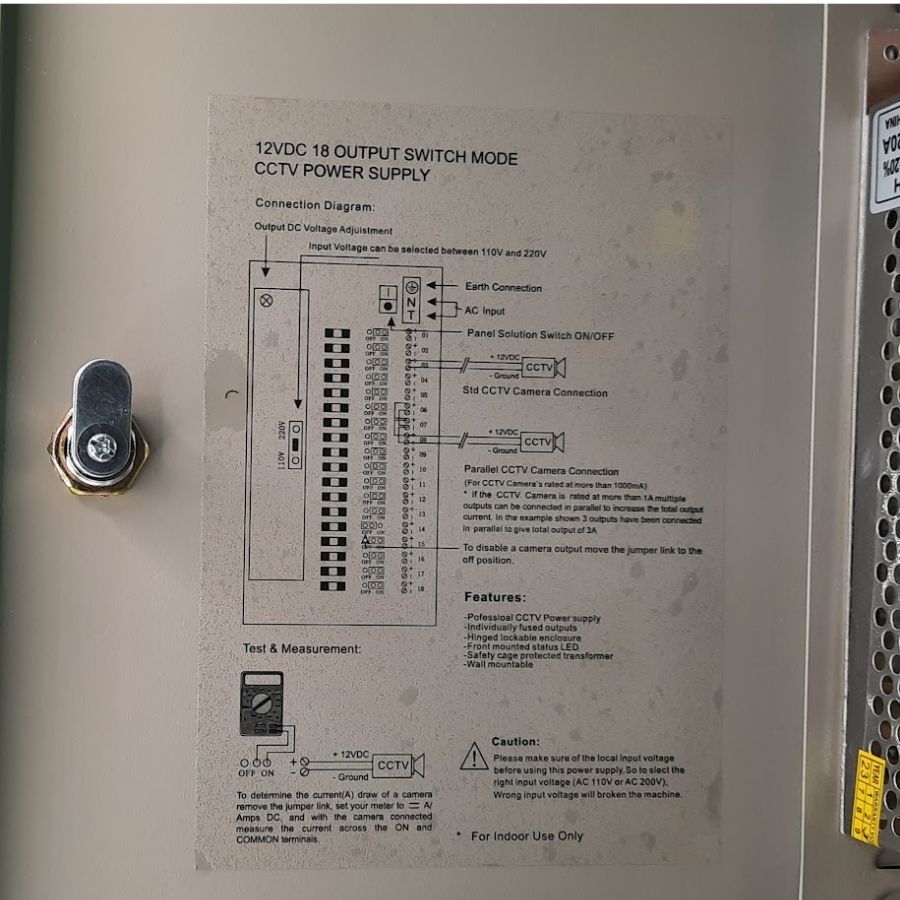

Parallel Connection Support
Outputs can be connected in parallel to increase the total output current for high-power cameras.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions HxWxD (Unpacked / Packaged) | 6.3 x 31.6 x 21.5 cm / 6.8 x 33.3 x 22.2 cm |
| Weight (Unpacked / Packaged) | 2.00 KG / 2.14 KG |
| Power Supply |
|
| Interface/Ports | 18 (individually fused) Channels |
| Additional Specifications |
|
Applications
- Home Security Systems – Power multiple cameras for comprehensive home surveillance.
- Office Surveillance – Ideal for small to medium-sized businesses with multiple cameras.
- Industrial Monitoring – Suitable for large-scale installations requiring reliable power distribution.
- Outdoor Camera Systems – Provides safe and stable power for outdoor CCTV setups.
Package Contents
Safety & Compliance
Important Safety Instructions:
Certifications:
Warranty & Support
Warranty Information
Please contact us for warranty information specific to this product.
Customer Support
For support, please visit our Contact Us page.
Interested in this product?
Contact us for pricing, bulk orders, or technical specifications.
