Cable Rolls

Cat-8 Cable (S/FTP, 305m, SAAT Digital)

Next-generation high-frequency networking engineered with 2000 MHz bandwidth and S/FTP double shielding for maximum throughput and zero crosstalk.

Product Images & Video

Cable view

Key Features

Ultra-High 2000 MHz Frequency Bandwidth

Designed for high-speed network infrastructures, supporting ultra-high frequency transmission up to 2000 MHz for next-generation data centers, enterprise server links, and high-density installations.

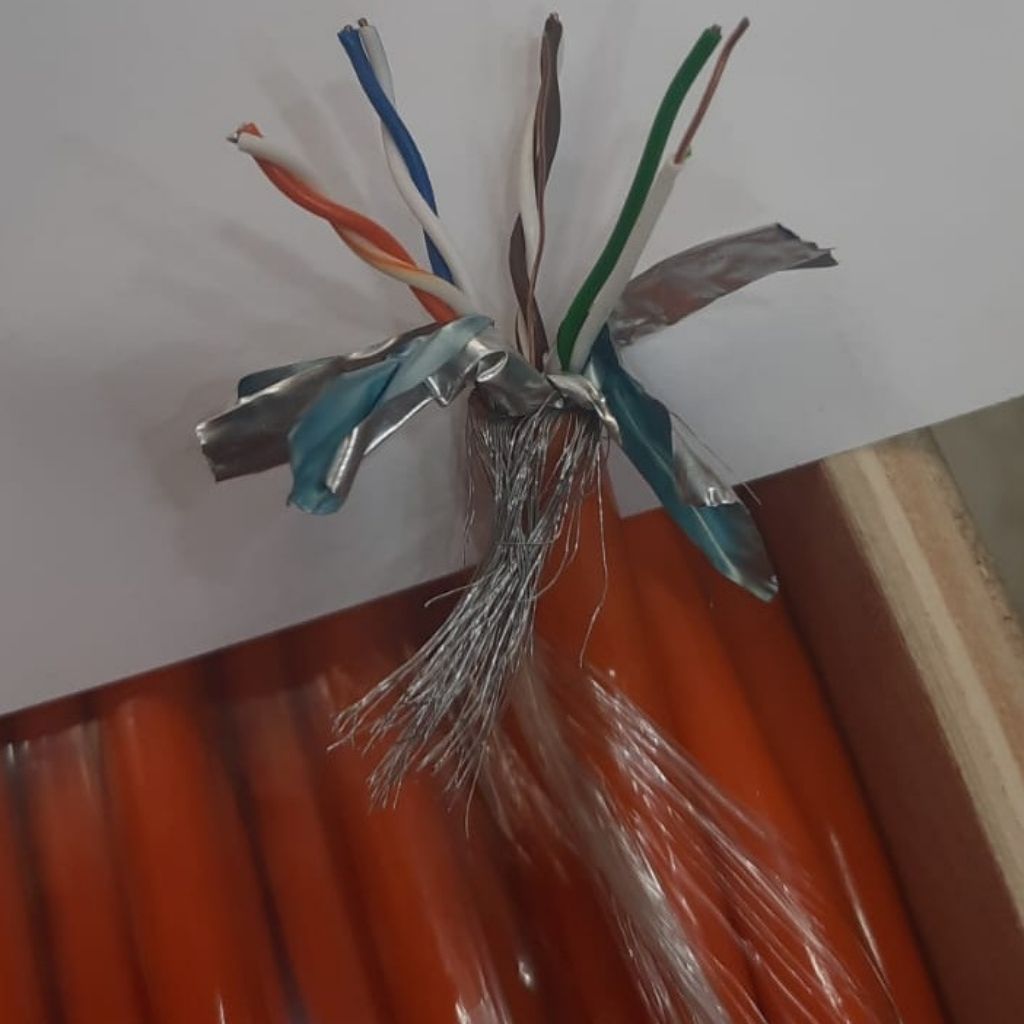

Double-Shielded S/FTP Architecture

Combines individual Aluminum foil pair shielding (PIMF) with a heavy 112 x 0.12 mm Aluminum-Magnesium (Al-Mg) outer braid mesh to eliminate electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk.

Thick 0.58mm CCA Conductors

Built with 0.58mm Copper-Clad Aluminum conductor cores insulated by 1.15mm High-Density Polyethylene (HDPE), delivering an economical solution for structured cabling runs.

Rugged 7.0mm Orange PVC Jacket

Features a heavy-duty 7.0mm outer PVC sheath in a high-visibility orange finish, making cable tracing and management quick and easy in complex conduits, cable trays, and patch panels.

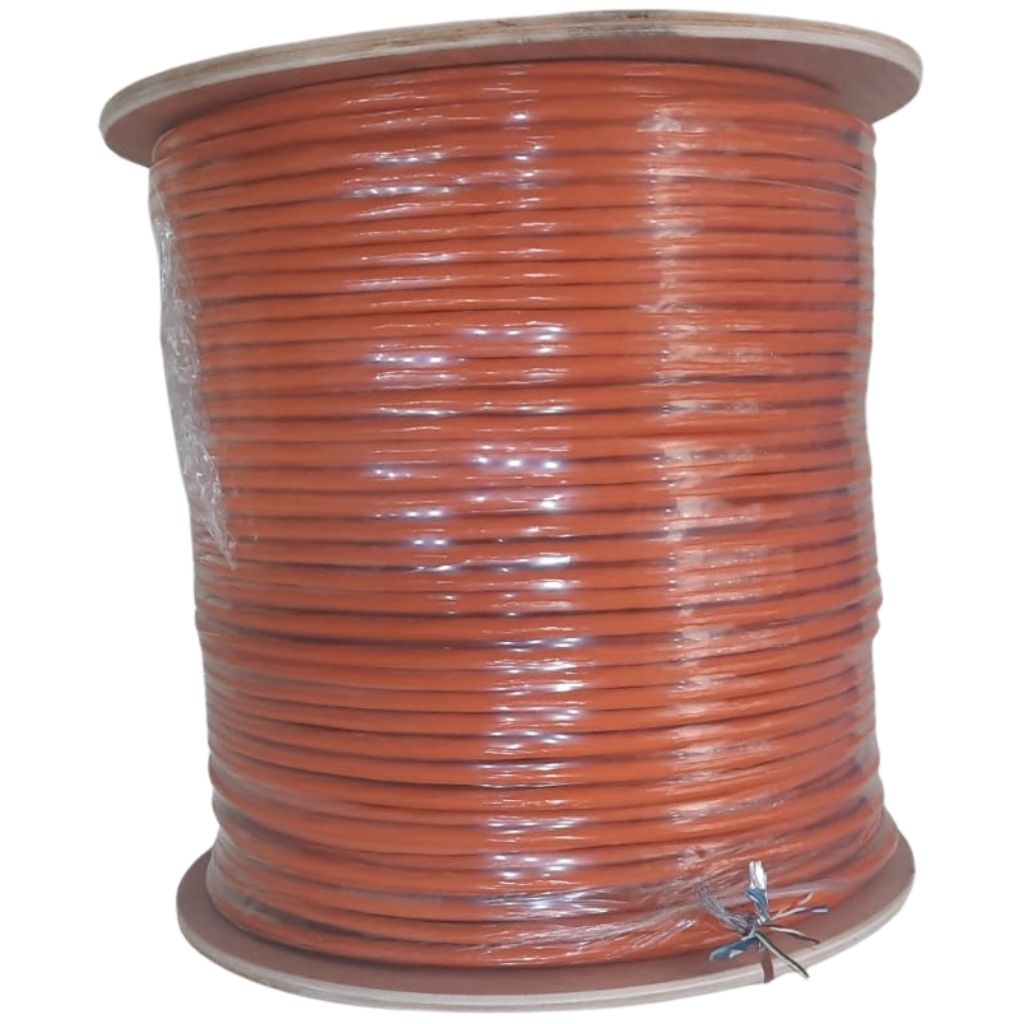

Bulk 305m Easy-Pull Packaging

Supplied in a durable 305m (1000ft) payout box for convenient, tangle-free pulling and efficient job-site deployment.

Technical Specifications

Attribute	Value	Explanation
Category	Cat‑8	High‑performance networking cable for 25G/40G short‑distance links
Bandwidth	2000 MHz	Very high frequency rating for ultra‑fast data transmission
Conductor Material	CCA (Copper‑Clad Aluminum)	Lightweight, cost‑effective conductor with higher resistance than pure copper
Conductor Diameter	0.58 mm	Slightly thicker than Cat‑7 (0.56 mm), improves conductivity
Insulation Material	HDPE	High‑density polyethylene for low signal loss and strong dielectric properties
Insulation Thickness	1.15 ± 0.02 mm	Thicker insulation for better pair separation and reduced crosstalk
Shielding Type	S/FTP	Each pair foil‑shielded + overall braided shield
Pair Shielding	Aluminum foil	Reduces internal crosstalk between pairs
Overall Shielding	112 × 0.12 mm Al‑Mg braid	Dense braid for strong EMI/RFI protection
Jacket Material	PVC	Flexible, durable, suitable for indoor installations
Outer Diameter (OD)	7.0 ± 0.2 mm	Same OD as Cat‑7, easy for installers to work with
Length	305 m (1000 ft)	Standard pull‑box length

Applications

High-Density Data Centers & Server Rooms – Purpose-built for switch-to-switch, top-of-rack (ToR), and end-of-row (EoR) interconnections requiring extreme bandwidth across short-haul horizontal runs.
25GBASE-T & 40GBASE-T Infrastructure – Supports next-generation 25 Gbps and 40 Gbps enterprise network architectures, providing a cost-effective alternative to short-range fiber optics.
Severe High-EMI Industrial Environments – The double-shielded design (112 x 0.12 mm Al-Mg braid + individual aluminum foil pairs) ensures stable performance in facilities with heavy machinery, power lines, and high electrical interference.
Enterprise Cloud & AI Computing Nodes – Accelerates data transmission between high-performance computing clusters, cloud storage backbones, and AI processing units.
High-Power PoE++ Deployments – Efficiently handles heat dissipation for power-hungry devices, including Wi-Fi 6E/7 access points, HD video walls, and smart building automation systems.
High-Visibility Organized Cable Racks – The bright orange PVC jacket enables quick tracing and clean identification in complex patch panels and multi-tier cable trays.

Package Contents

1x Cat-8 Cable (S/FTP, 305m, SAAT Digital)

Safety & Compliance

Important Safety Instructions:

Ensure Proper Grounding Connection: The 112 x 0.12 mm Al-Mg outer braid shield and aluminum pair foils must be grounded at both ends using shielded connectors and grounded patch panels. Un-grounded shielding can act as an antenna, gathering unwanted ambient noise.
Observe High-Power PoE Voltage Limits: Because CCA conductors exhibit higher DC resistance than solid copper wire, avoid utilizing this cable for continuous high-wattage PoE++ (e.g., IEEE 802.3bt 60W–90W) applications across long distances to prevent resistive heat buildup inside cable bundles.
Respect Minimum Bend Radius Limits: Do not bend the cable beyond eight times its 7.0 mm outer diameter during pulling or routing. Sharp bends or kinks can rupture the individual aluminum foil pair wraps and deform the outer braid, causing severe high-frequency 2000 MHz signal degradation.

Avoid Excessive Pulling Force: Do not exceed standard pulling tension limits during installation through conduits. Over-stretching can thin the 0.58 mm CCA conductors and disrupt the uniformity of the double shielding layers, leading to permanent impedance mismatches.

Inspect Shield Clearance During Stripping: When removing the orange PVC outer jacket, take extra care not to nick or slice the underlying 112 x 0.12 mm Al-Mg braid or pair foils. Cleanly trim away any metallic foil or braid debris before termination to prevent accidental short circuits against internal pins.

Certifications:

ISO/IEC 11801 Class I / Class II Standard: Complies with international Class I/II channel specifications, supporting high-frequency bandwidths up to 2000 MHz for 25 Gbps and 40 Gbps data center applications.
ANSI/TIA-568.2-D Category 8 Compliant: Verified to meet American National Standards Institute requirements for high-speed balanced twisted-pair copper cabling systems.
CE (European Conformity) Certified: Fully compliant with European health, safety, and environmental protection standards for low-voltage signal infrastructure.
RoHS Compliant: Manufactured free from restricted hazardous substances (including lead, mercury, and cadmium) for safe, eco-friendly commercial deployment.
