Cat-7 Cable (S/FTP, 305m, SAAT Digital)

Future-proof your network infrastructure with double-shielded CAT7 cabling built for flawless 10Gbps performance and maximum noise immunity.

Product Images & Video

Cable view

Key Features

10-Gigabit Ultra-High-Speed Performance

Engineered to support bandwidth frequencies up to 600 MHz and data transfer speeds up to 10 Gbps, fully complying with ISO/IEC 11801 Class F and ANSI/TIA-568.2-D standards.

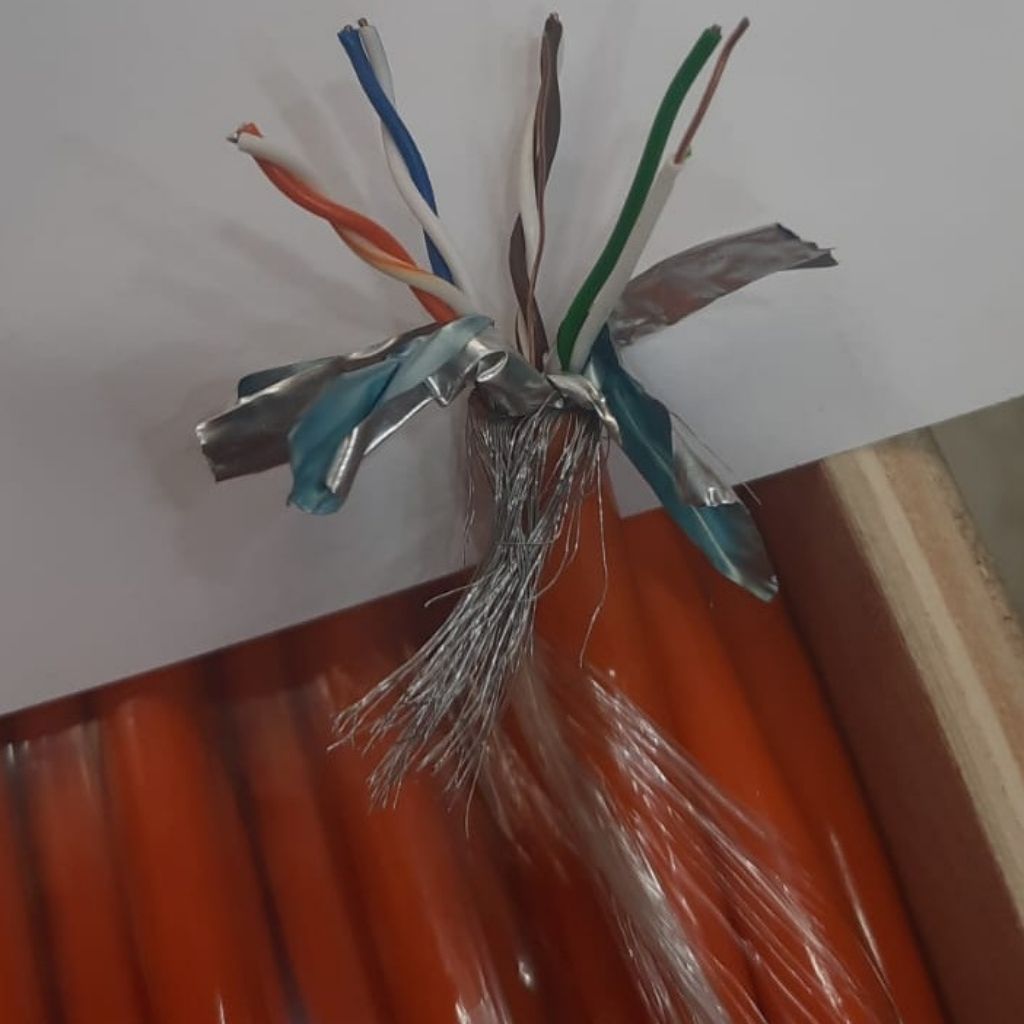

S/FTP Double-Shielded Construction

Features individually foil-wrapped pairs (PIMF) plus a heavy, multi-strand outer tinned copper braid shield for maximum immunity against severe EMI, RFI, and alien crosstalk.

Heavy-Duty Solid Conductor Cores

Built with solid 23 AWG copper conductors to ensure minimal signal attenuation, high structural durability, and reliable transmission across long distance runs.

High-Visibility Orange PVC Jacket

Sheathed in a durable, bright orange outer jacket designed for quick visual identification, easy tracing, and clean cable management in complex conduit and rack setups.

Optimized High-Power PoE++ Compatibility

Dual-layer metallic shielding and thick conductor gauges provide superior thermal dissipation for high-wattage Power over Ethernet (PoE, PoE+, PoE++).

Bulk 305m Easy-Dispense Box

Packaged in a heavy-duty 305m (1000ft) payout box for tangle-free, efficient pulling on commercial job sites.

Technical Specifications

Attribute	Value	Explanation
Category	Cat‑7	High‑shielded networking cable for stable high‑speed links
Bandwidth	600 MHz	Supports high‑frequency transmission suitable for Gigabit/10G short‑distance runs
Conductor Material	CCA (Copper‑Clad Aluminum)	Lightweight, cost‑effective conductor; common in bulk indoor cabling
Conductor Diameter	0.56 mm	Slightly thinner than Cat‑8 (0.58 mm)
Insulation Material	HDPE	High‑density polyethylene for low signal loss and strong dielectric performance
Insulation Thickness	1.13 ± 0.02 mm	Provides pair separation and reduces crosstalk
Shielding Type	S/FTP	Each pair foil‑shielded + overall braided shield
Pair Shielding	Aluminum foil	Reduces internal pair‑to‑pair interference
Overall Shielding	112 × 0.12 mm Al‑Mg braid	Dense braid for strong EMI/RFI protection
Jacket Material	PVC	Flexible and durable for indoor installations
Outer Diameter (OD)	7.0 ± 0.2 mm	Same OD as Cat‑8, easy for installers to work with
Length	305 m (1000 ft)	Standard pull‑box length

Applications

Data Centers & High-Density Server Racks – Ideal for top-of-rack switch links, patch panels, and server connections where high-visibility orange cabling simplifies cable tracing.
High-EMI Industrial Environments – Built to perform near heavy machinery, high-voltage electrical lines, transformers, and wireless gear where unshielded cables fail due to noise interference.
Advanced PoE++ & Surveillance Networks – Delivers stable power and data to high-draw PTZ security cameras, Wi-Fi 6/6E access points, and smart building access controllers.
Pro Audio/Visual & 4K/8K Broadcast – Supports uncompressed AV-over-IP streaming, digital signage, and studio production setups requiring maximum bandwidth with zero signal loss.
Grounded Commercial Structured Cabling – Designed for complete shielded channel installations requiring grounded metal connectors and patch panels.

Package Contents

1x Cat-7 Cable (S/FTP, 305m, SAAT Digital)

Safety & Compliance

Important Safety Instructions:

Ensure Proper Grounding: Because this cable utilizes double shielding (S/FTP), the braid and foil layers must be properly grounded at both ends using shielded RJ45/GG45 connectors and grounded patch panels. Un-grounded metal shielding can inadvertently act as an antenna and draw ambient noise into the network.
Observe Minimum Bend Radius Limits: Do not bend the cable beyond eight times its outer diameter during installation. Excessive bending or kinking can rupture the individual foil wraps around the twisted pairs and crush the outer braid, degrading high-frequency 600 MHz shielding performance.
Respect Maximum Pulling Tension: Avoid using excessive force when pulling through conduits or around tight corners. High tension can stretch the solid 23 AWG conductors and deform the internal metallic shielding layers, leading to permanent signal attenuation.

Inspect Shield Termination Clearances: When stripping the outer orange PVC jacket, take care not to nick or slice the inner tinned copper braid or individual pair foils. Ensure any trimmed braid or foil debris is cleared away to prevent short circuits against internal conductor pins.

Separate from High-Voltage Direct Contact: While the S/FTP shielding protects against electromagnetic noise from nearby power lines, the outer PVC jacket is rated for low-voltage signal transmission only. Avoid running the cable in direct physical contact with uninsulated high-voltage AC electrical lines.

Certifications:

ISO/IEC 11801 Class F Standard: Complies with international Class F cabling channel specifications, supporting high-frequency transmission bandwidths up to 600 MHz for 10 Gbps Ethernet deployment.
ANSI/TIA-568.2-D Compliant: Tested and verified to satisfy balanced twisted-pair telecommunications cabling performance requirements.
CE (European Conformity) Certified: Fully complies with European health, safety, and environmental protection standards for low-voltage data communications products.
RoHS Compliant: Manufactured free from restricted hazardous materials (such as lead, mercury, and cadmium) to ensure safe, eco-friendly deployment in commercial and residential facilities.
EU CPR Fire Safety Rated: Meets Construction Products Regulation (CPR) requirements for reaction-to-fire classifications, guaranteeing low flame spread and safe installation inside building walls and ceilings.
