Cat-6 Cable (UTP, 305m, SAAT Digital)

Smart, cost-effective networking built for seamless data streaming, IP surveillance, and effortless home and office connections.

Product Images & Video

Cable view

Key Features

High-Speed Gigabit Performance

Built to support high-bandwidth network traffic, IP surveillance systems, and VoIP deployments, meeting ANSI/TIA-568.2-D and ISO/IEC 11801 Class E international standards.

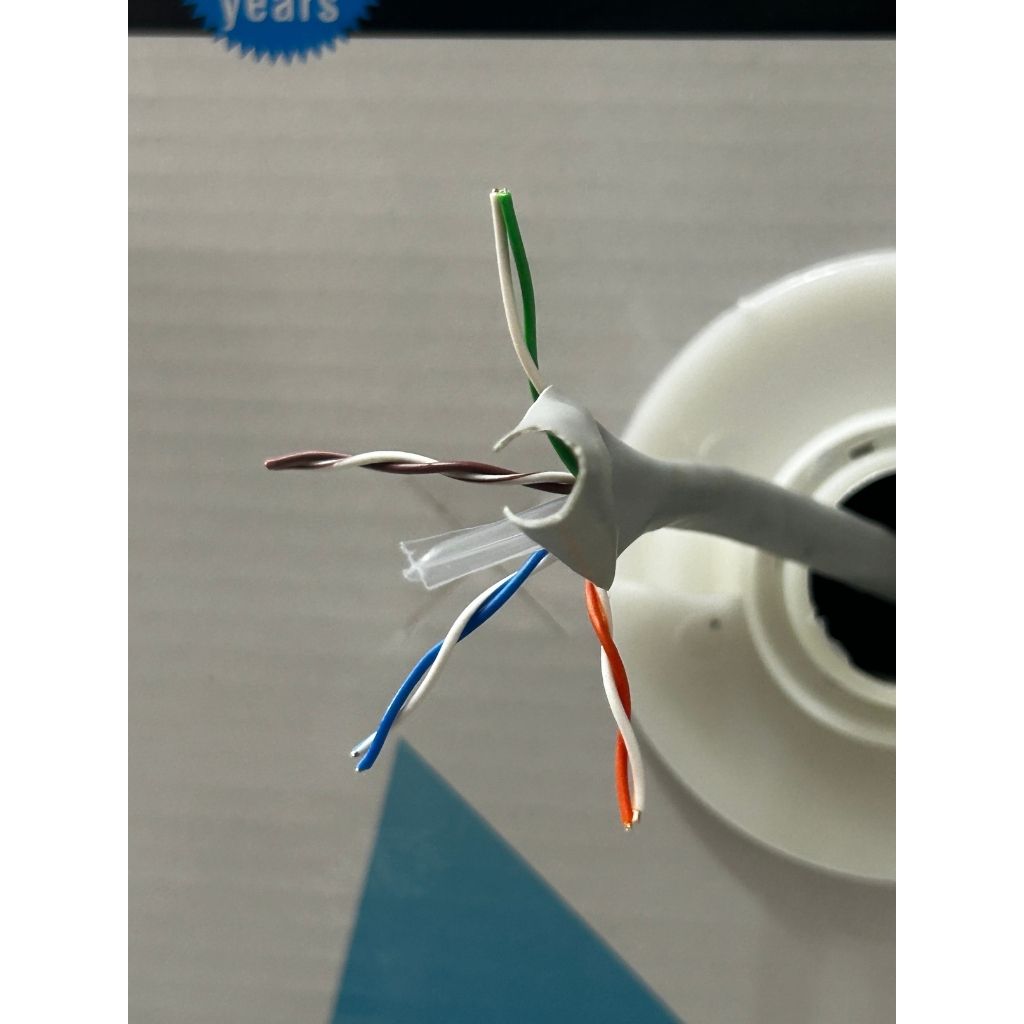

4-Pair CCA Conductor Design

Features 4 unshielded twisted pairs (8 conductors) with a 0.56mm Copper-Clad Aluminum core structure, providing a lightweight and economical solution for structured cabling runs.

Integrated Cross Spline (Pair Separator)

Built with a central polyethylene (PE) cross-filler that maintains physical separation between the 4 twisted pairs, significantly reducing internal near-end crosstalk (NEXT) and signal distortion.

1.0mm PE Insulation & Rip Cord

Insulated with 1.0mm high-density PE on individual conductors for stable signal integrity, along with an integrated internal rip cord to simplify jacket stripping without damaging the wire cores.

Durable 6.1mm PVC Outer Sheath

Protected by a tough 6.1mm PVC outer jacket that offers excellent flexibility, snag resistance, and long-term durability during conduit and tray pulls.

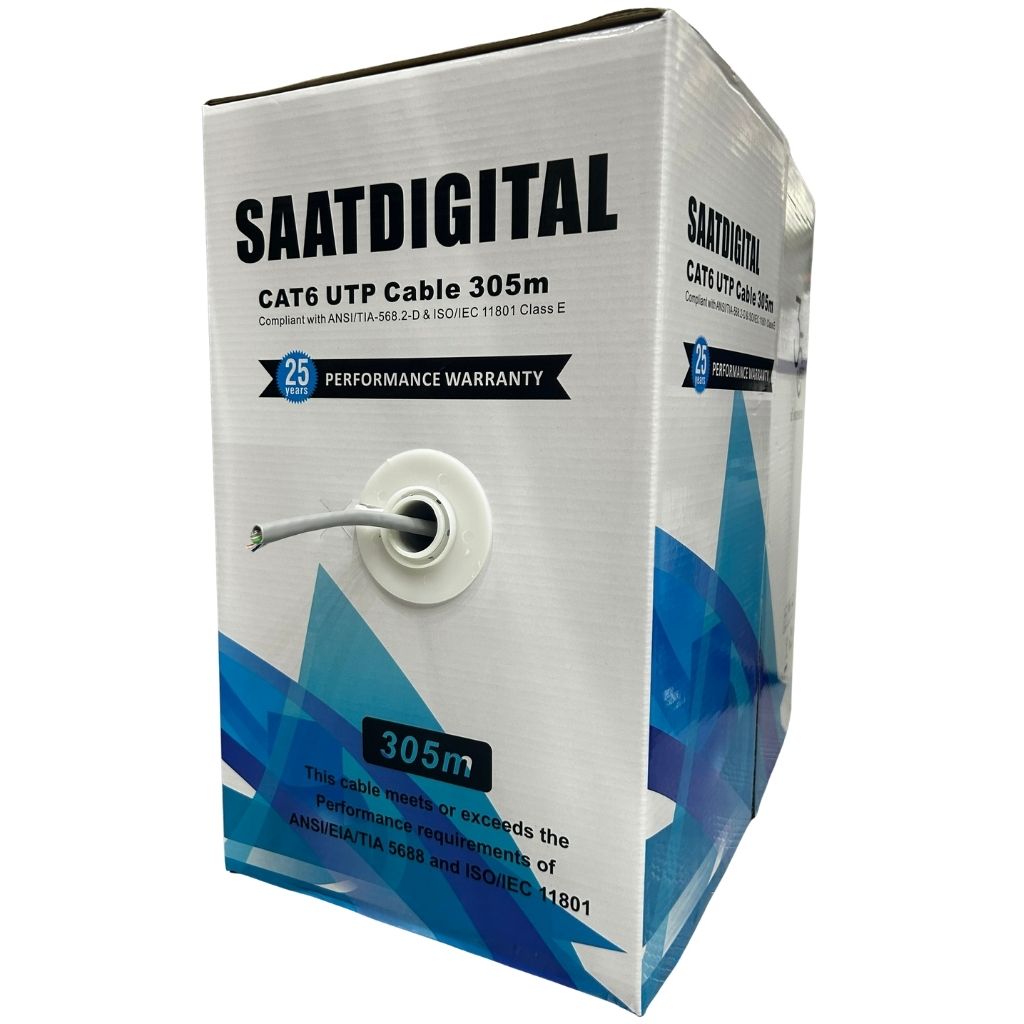

Bulk 305m Easy-Pull Packaging

Supplied in a heavy-duty 305m (1000ft) payout box featuring a smooth plastic payout grommet to ensure snag-free, tangle-free dispensing on job sites.

Technical Specifications

Attribute	Value	Explanation
Category	Cat‑6	Standard performance cable for Gigabit Ethernet and stable CCTV networking
Bandwidth	250 MHz	Suitable for 1 Gbps up to 100 m; supports 10 Gbps over short runs
Conductor Material	CCA (Copper‑Clad Aluminum)	Lightweight, cost‑effective conductor commonly used in bulk indoor cabling
Conductor Diameter	23/24 AWG (≈ 0.56 mm)	Typical Cat‑6 conductor size
Insulation Material	PE (Polyethylene)	Provides good dielectric strength and low signal loss
Insulation Thickness	≈ 1.0 mm	Ensures pair separation and stable performance
Shielding Type	UTP (Unshielded Twisted Pair)	No foil or braid; relies on twist quality for noise reduction
Pair Shielding	None (UTP)	No individual foil around pairs
Overall Shielding	None (UTP)	No braided shield; simpler and more flexible than S/FTP
Separator	Cross Separator (Spline)	Plastic cross keeps pairs separated, reduces crosstalk; common in Cat‑6
Rip Cord	Included	Allows easy jacket stripping during installation
Jacket Material	PVC	Flexible and durable for indoor installations
Outer Diameter (OD)	≈ 6.1 mm	6.1 PVC Jackets
Length	305 m (1000 ft)	Standard pull‑box length

Applications

Commercial Network Infrastructure – Ideal for routing horizontal cabling drops from server racks and patch panels to workstation wall outlets across office buildings, retail shops, and commercial spaces.
IP Video Surveillance (CCTV) – Provides reliable data transmission for IP camera networks, NVR video feeds, and security monitoring setups across residential and commercial properties.
Smart Home & Residential Networking – Perfect for wiring home networks, smart TVs, audio systems, and high-speed internet routers to ensure stable gigabit connections.
VoIP Telephony Deployments – Delivers clear, uninterrupted voice data signals for office IP phone networks and telecommunication setups.
Intercom & Access Control Systems – Suitable for connecting electronic door entry terminals, biometric access controllers, and building intercom setups.

Package Contents

1x Cat-6 Cable (UTP, 305m, SAAT Digital)

Safety & Compliance

Important Safety Instructions:

Adhere to Minimum Bend Radius Limits: Avoid bending the cable tighter than four times its outer diameter during installation. Kinking or severe bending can deform the central cross spline, compress internal conductors, and cause impedance mismatches or signal degradation.
Observe Safe Pulling Tension: Do not exceed maximum pulling tension limits when pulling cable through conduits or cable trays. Excessive force can stretch the 0.56mm CCA conductors, causing permanent core wire thinning and structural damage.
Avoid High-Power PoE Applications: Because CCA (Copper-Clad Aluminum) conductors have higher DC resistance than solid copper, this cable should not be used for high-wattage Power over Ethernet (such as IEEE 802.3bt Type 3/4 PoE+ or higher) to prevent excessive heat buildup inside bundled cable runs.

Avoid Exposure to Harsh Elements: This cable is built with a standard PVC jacket meant for indoor installations. Do not route it through exposed outdoor runs, direct sunlight, or standing water unless enclosed within UV-rated, weather-sealed conduits.

Isolate from High-Voltage Electrical Lines: Maintain proper clearance from mains AC wiring, fluorescent light ballasts, and heavy electrical transformers to minimize electromagnetic interference and lower the risk of electrical hazards.

Certifications:

ANSI/TIA-568.2-D Compliant: Tested and verified to meet Balanced Twisted-Pair Telecommunications Cabling and Components Standards for Category 6 channel transmission.
ISO/IEC 11801 Class E Certified: Complies with international specifications for generic customer premises cabling systems, ensuring gigabit performance over standard network links.
ANSI/EIA/TIA 568B Standard: Conforms to commercial building telecommunications wiring standards for consistent pinout configurations (T568A / T568B) during termination.
CE (European Conformity): Meets European health, safety, and environmental protection requirements for low-voltage electronic cabling products.
RoHS Compliant: Manufactured free from hazardous substances—such as lead, mercury, and cadmium—ensuring eco-friendly compliance for building installations.

Warranty & Support

Warranty Information

Please contact us for warranty information specific to this product.
